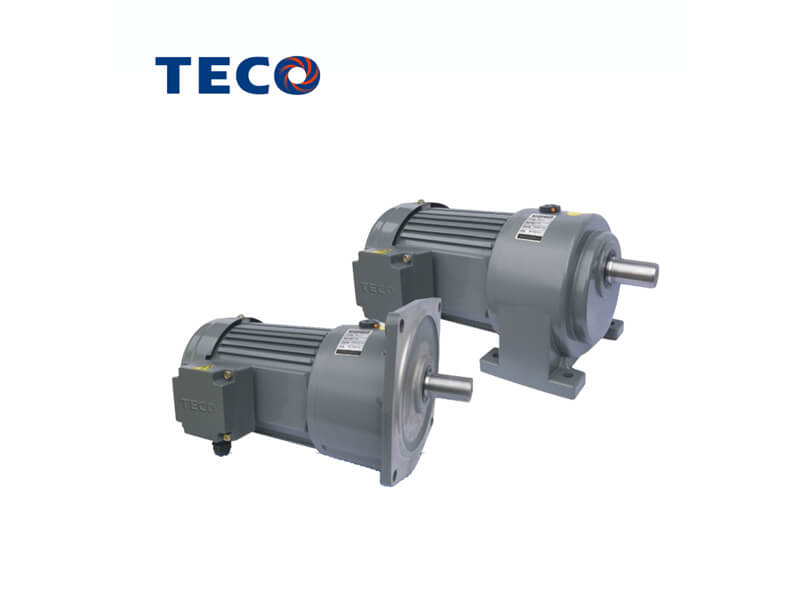

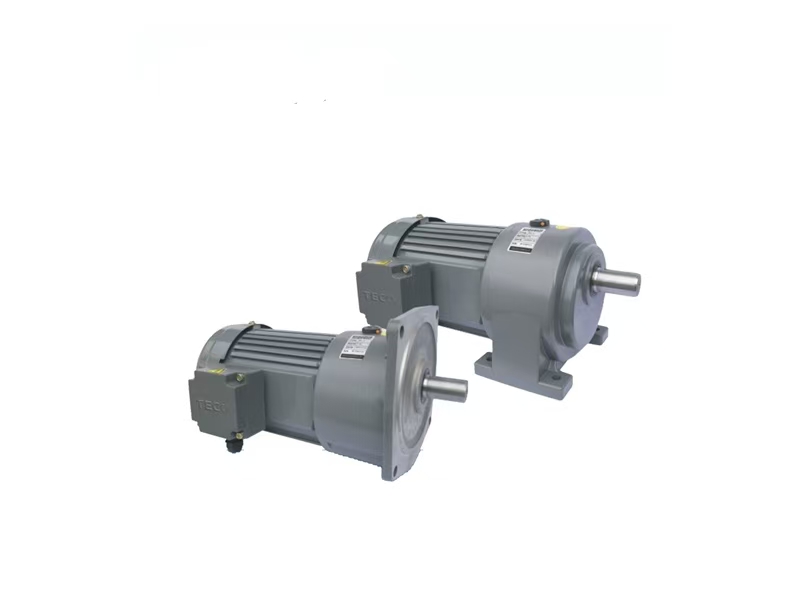

R系列齿轮减速马达型号说明 Description of motor model:

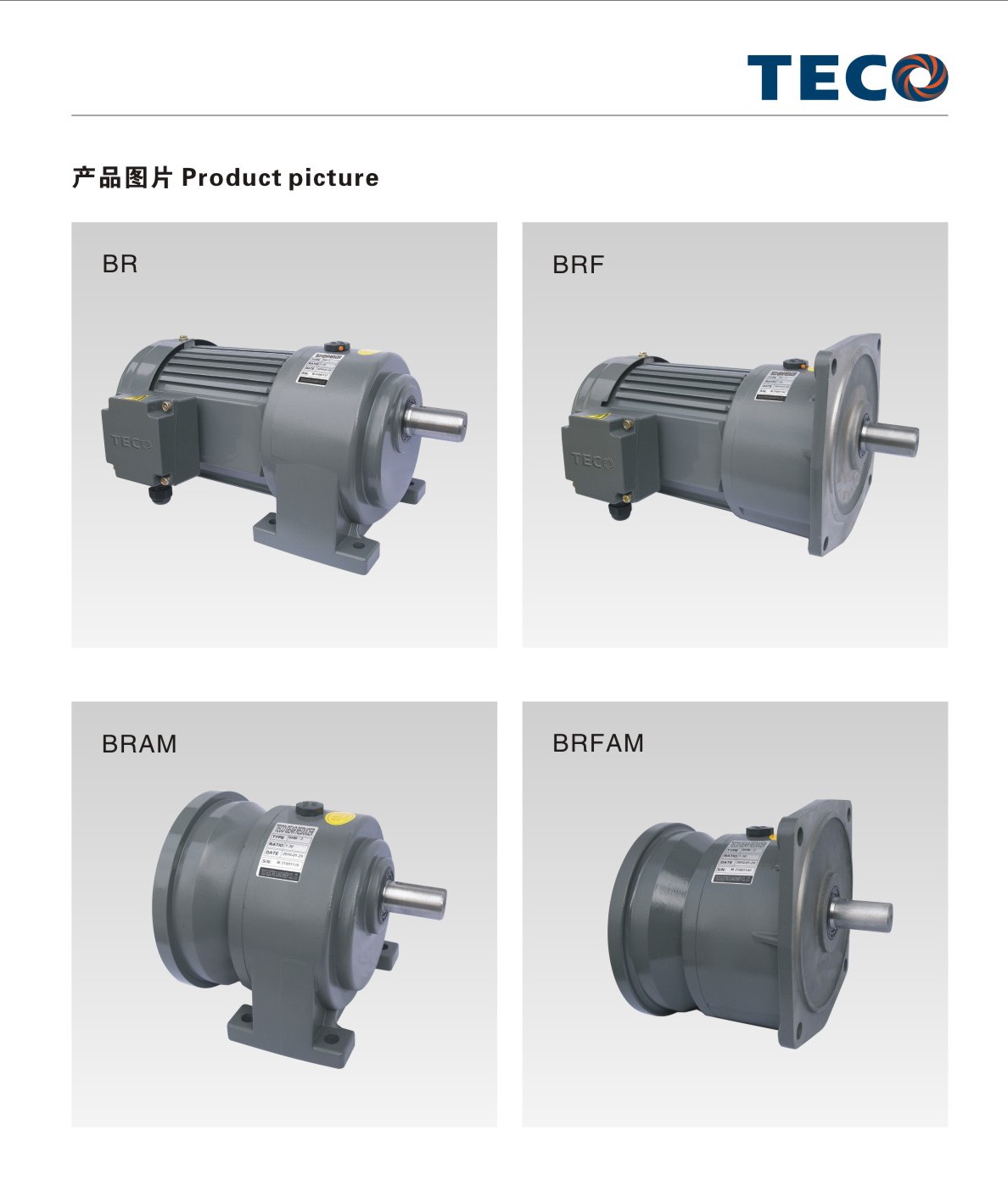

1. 机型代号Types: BR,BRF,BRAM,BRFAM齿轮减速马达
2. 轴径Shaft diameter:17-Φ18、27-Φ22、37-Φ28、47-Φ32、57-Φ40、67-Φ50
3. 功率Capacity:100W-3700W
4. 减速比Ratio:3、5/10~1800
5. 电机基本结构Motor basic data:
S-220/380v 50hz60hz 3phase
V- inverter motor
Z: light duty type
6. 刹车器 Brake Unit:
BMG:制动器brakes 无代码:No code,No brake
手动释放装置 Brake release
7. 安装位置Mounting position:
M1-标准standard,
M2- 出力轴向上output shaft upward,
M3-倒装invert,
M4-出力轴向下output shaft downward,
M5-左侧lift side,
M6-右侧right side
8. 依出力轴看接线盒方向View frpm output shaft: 0°,90°, 1800°,270°,
9. 入线口方向Wire inlet: lift, top, right,down
电机参数Motor specification
防护等级Protection: IP54 totally enclosed fan cooled type
启动方式Starting:直接启动direct start
工作时间Time rating: S1 连续工作制continuous running
绝缘等级Insulation:F级绝缘F-class
工作温度Environment: -10℃~+40℃ ,湿度小于90% temperature between -10℃~+40℃ Humidity less than 90%
电压Voltage: 50hz-220v/230v/240v/380v/400v/415v/440v 60hz-220v/240v/380v/415v/440v/460v/480v/600v
极数Pole: 2,4,6,8
标准Standard: IEC-34 CNS-10919
海拔Sea level: 1000米以下under 1000m
接线盒Terminal box: IP55 防水铝壳with ip55 class water-proof aluminum terminal box
